The intelligent photoelectric search and tracking system is a high-tech product that integrates infrared thermal imagers, visible light cameras, and laser rangefinders as its detection subsystem.
The system is capable of collecting multi-band images, distance, other data from targets and backgrounds, enabling all-weather reconnaissance, identification, tracking of ground, sea and air targets.
It can be mounted on various drone platforms to achieve automatic target tracking, adapting to different operational environments and mission requirements.
● Dual video output capabilities in both infrared and visible light.
● Switching between infrared and visible light video output.
● Two polarity switching functions for infrared: black hot and white hot.
● Equipped with infrared image enhancement capabilities.
● Angular position follow-up capability.
● Function of isolating carrier disturbances in both azimuth and pitch through two-axis gimbal isolation.
● Real-time output functions for the pod's frame angle, angular velocity, and ranging capabilities.

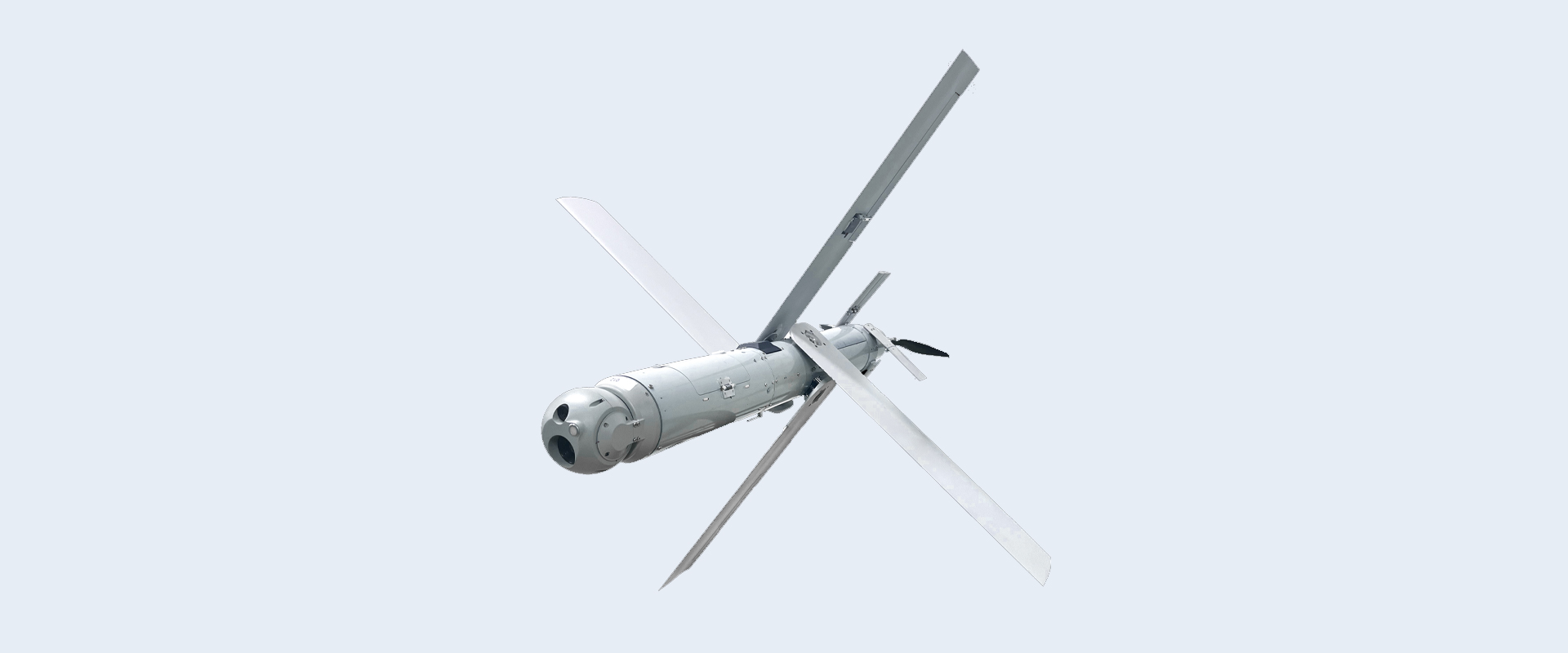

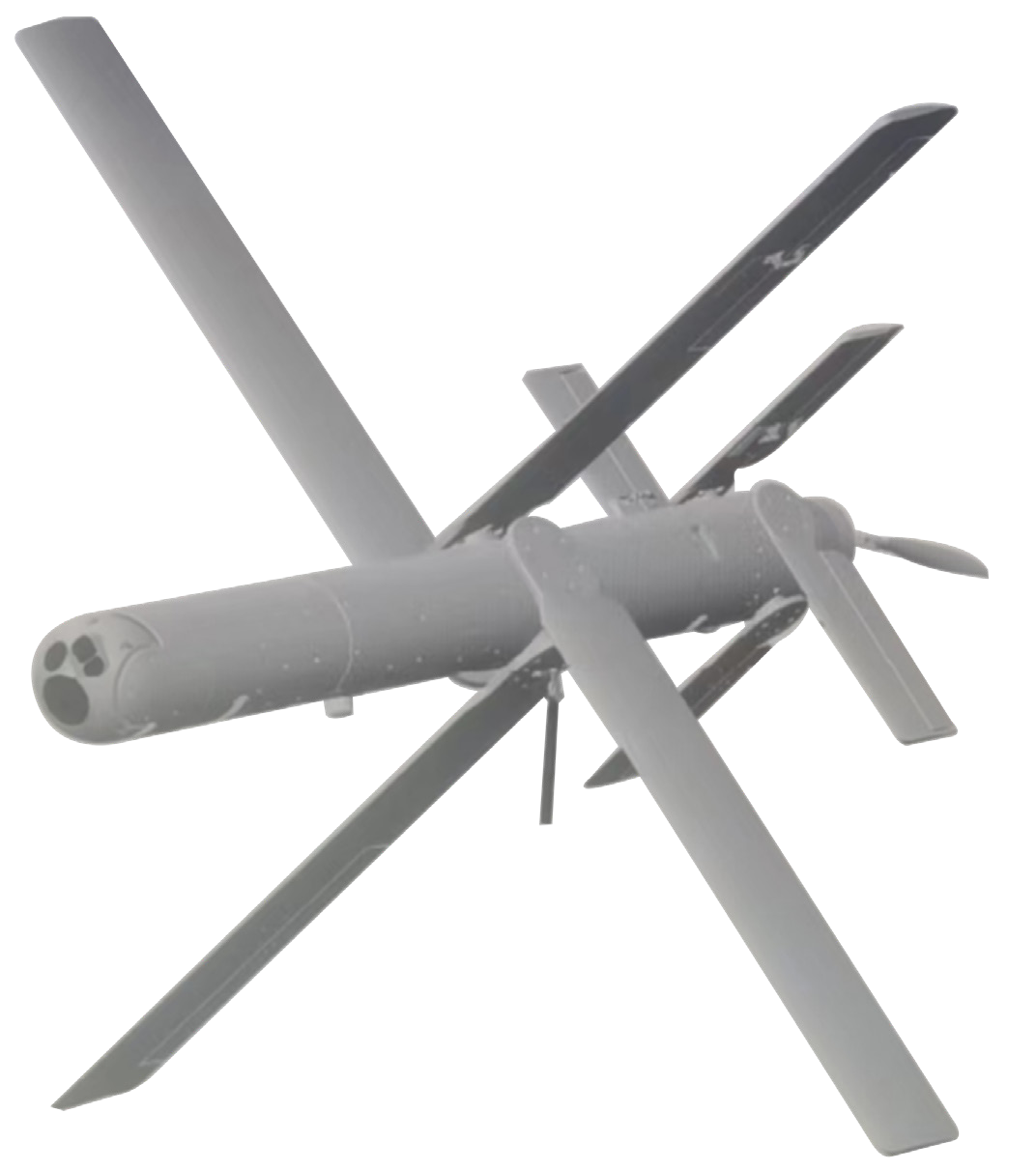

3.5Kg Strike Drone/Loitering Munition

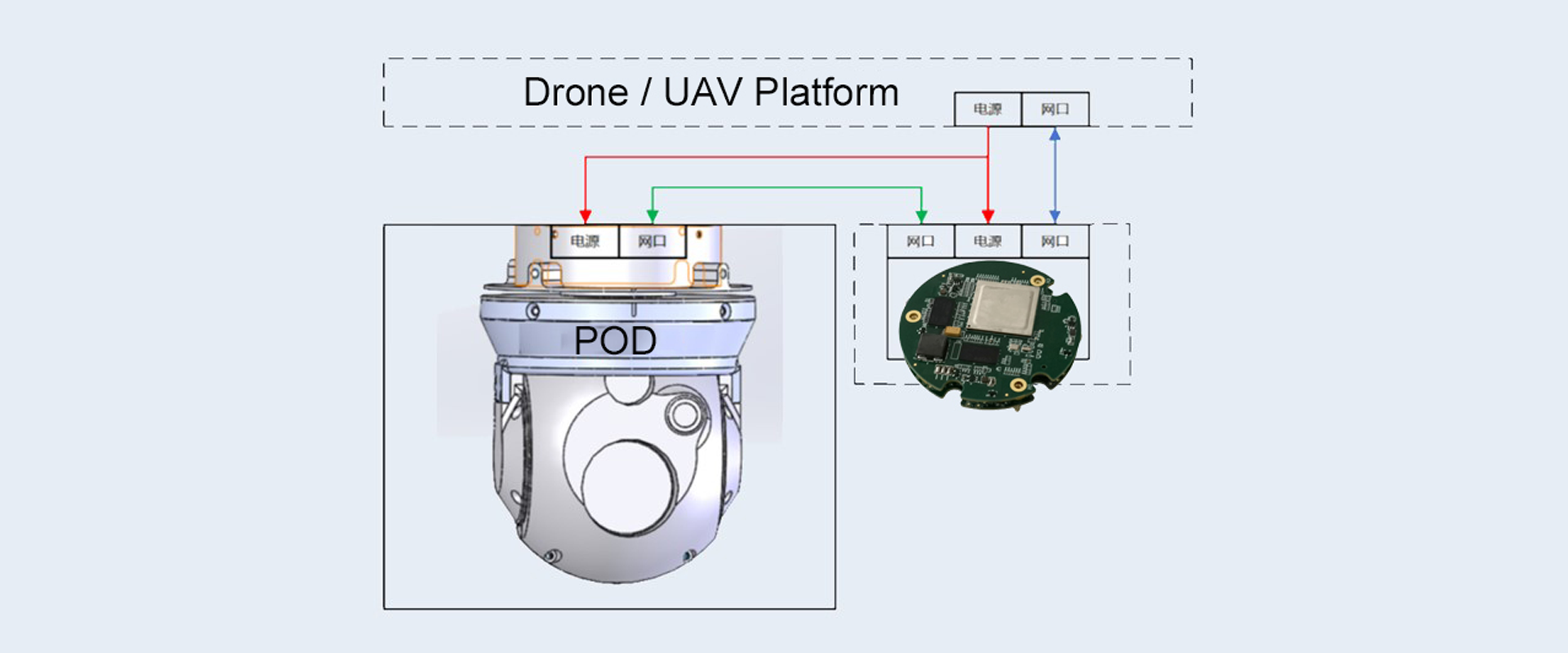

EO Search and Track System consists of EO pod and intelligent image processing board (hereinafter referred to as the“image board”).
The pod adopts a two-axis spherical structural design, mainly including:Stabilized platform (two-axis structural frame, azimuth encoder, azimuth motor, pitch encoder, pitch motor, gyroscope, slip ring, servo control board), Visible light camera, Infrared thermal imager, Laser rangefinder.
The image board is externally mounted outside the spherical housing of the pod, transmit the data via network cable.
